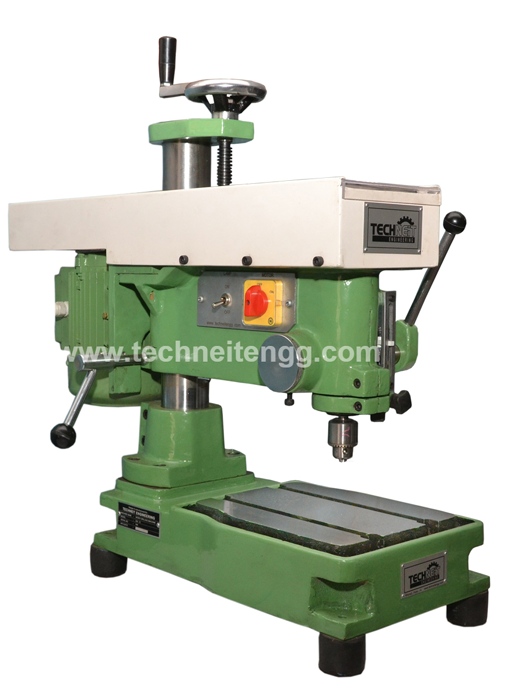

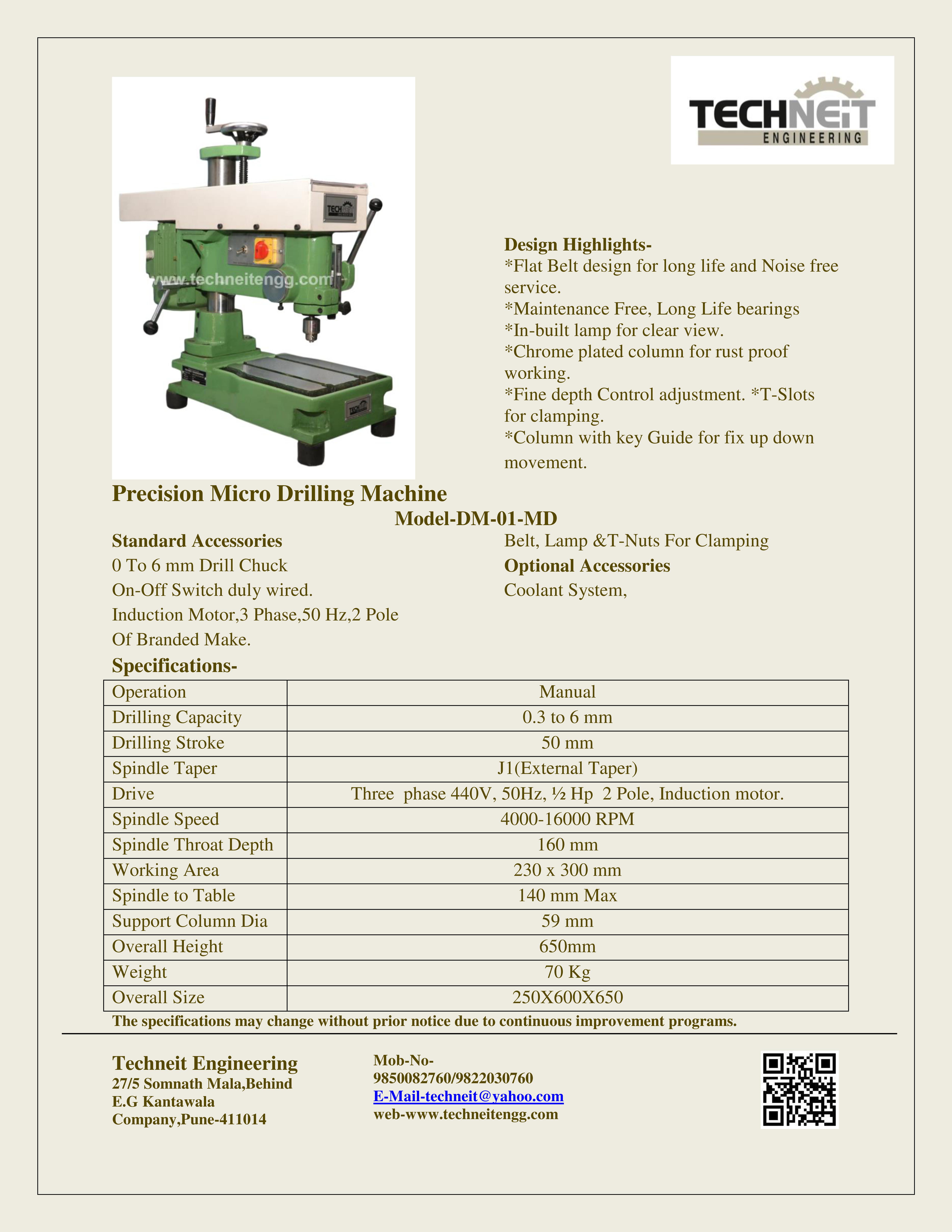

Precision Micro Drilling Machine
Model-DM-01-MD
Design Highlights
- Flat Belt design for long life and Noise free service.
- Maintenance Free, Long Life bearings
- In-built lamp for clear view.
- Chrome plated column for rust proof working.
- Fine depth Control adjustment. *T-Slots for clamping.
- Column with key Guide for fix up down movement.
Standard Accessories
- 0 To 6 mm Drill Chuck.
- On-Off Switch duly wired.
- Belt, Lamp &T-Nuts For Clampin./li>
Optional Accessories
- Coolant System.
- Induction Motor,3 Phase,50 Hz,2 Pole.
- Of Branded Make.
See Video of Precision Micro Drilling Machine
Model-DM-01-MD
Specifications
| Operation | Manual |
| Drilling Capacity | 0.3 to 6 mm |
| Drilling Stroke | 50 mm |
| Spindle Taper | J1(External Taper) |
| Drive | Three phase 440V, 50Hz, ½ Hp 2 Pole, Induction motor |
| Spindle Speed | 4000-16000 RPM |
| Spindle Throat Depth | 210 mm |
| Working Area | 230 x 300 mm |
| Spindle to Table | 140 mm Max |
| Support Column Dia | 59 mm |
| Overall Height | 700mm |
| Weight | 70 Kg |
| Overall Size | 250X600X700 |
The specifications may change without prior notice due to continuous improvement programs.
