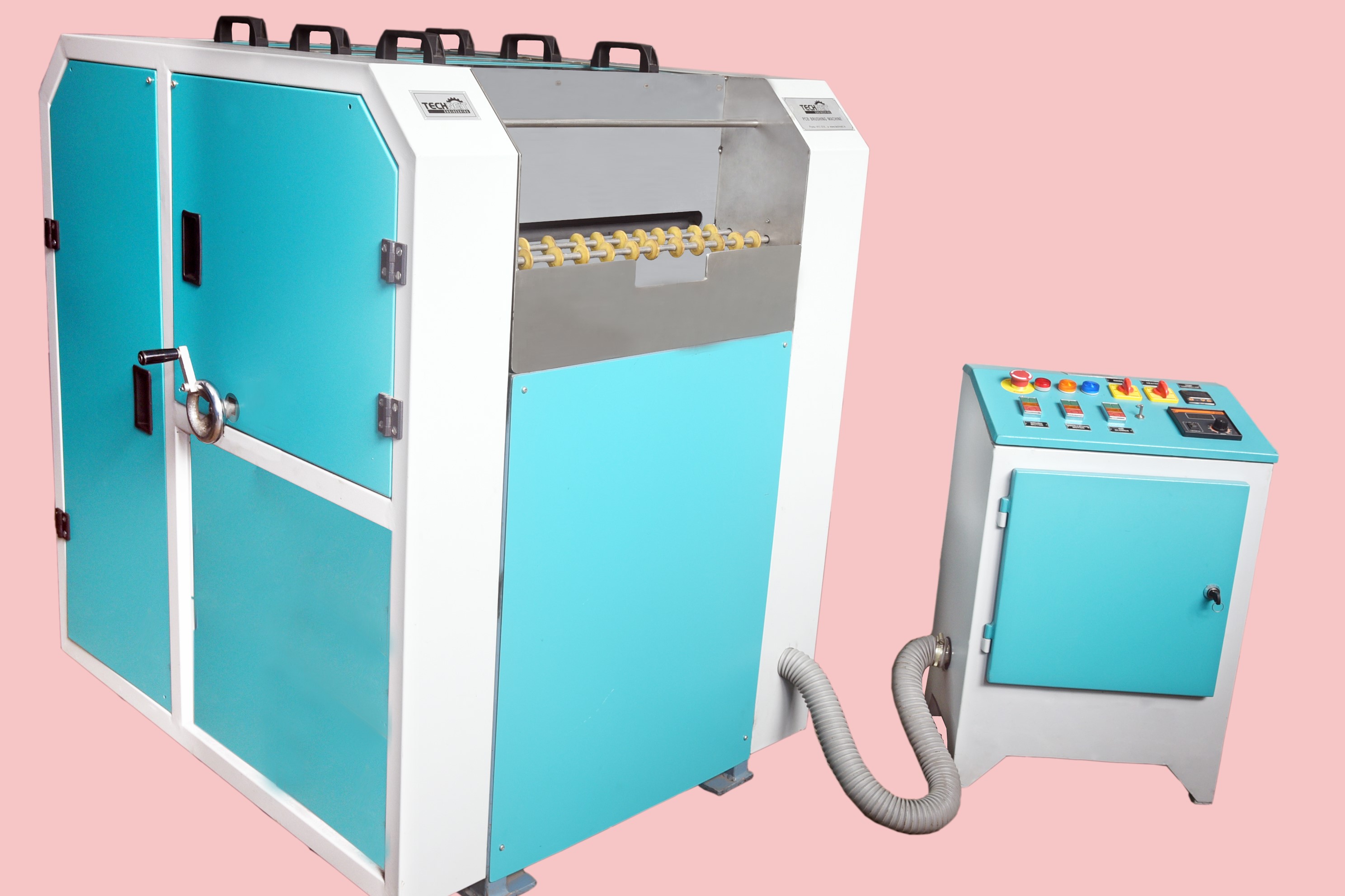

PCB Brushing Machine/Scrubbing Machine
Model-BM-01
For Materials- Normal CCL like FR1, FR4 and Glass Epoxy Boards, Metal CCL
Design Highlights
- Solid Metal body with professionally designed
- Simultaneous Brushing Washing and Squeezing, Warm Air turbine Blowing Drying
- 18 Inch Brush With oscillation
- Transparent Top lids
- Double Side parallel Brush Adjustment of the brush For Mutual parallel Setting
- SS 3016 Main shaft
- Branded Motors and Electrical Parts
- Chrome Plated Internal Part for rush Proof working
- Machine can accommodate various size brushes
- Canopy Type Control panel
- PVA Roller for Squeezing
- Digital Temperature control
- Digital Conveyor Speed Control with reversing arrangement
Standard Accessories
- Spanner and Allen key Set
Optional Accessories
- Nylon Brush
See Video of PCB Brushing Machine BM 01
Model-BM-01
Specifications
| Operation | Semi-Automatic |
| Power | 230V/440 ,50Hz,Single /Three Phase |
| Working Width | 460 |
| Oscillation Stroke | 14 mm(7+7) |
| Minimum Board Size | 100 |
| Brush Dimension | 125x460x50.8 mm |
| Brushing Speed | 1440 RPM |
| Oscillation Frequency | 150 Storke/Min |
| Rollers | Nitrile |
| Roller Drive | 0.75 KW |
| Roller Speed | 0-2 Mtrs/Min |
| Max. Thickness | 0.3 to 5 |
| Body Structure | SS304 Stain Less Steel/Heavy MS Body |
| Weight | 550kg |
| Overall Size | 1100*1090*1050 |
*The specifications may change without prior notice due to continuous improvement programs.
